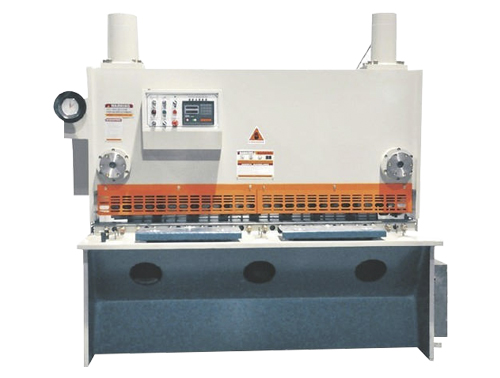

Hydraulic Shearing Machine supplier in pune

We provide the best Hydraulic Shearing Machine in pune, India at best cost. It is the best Hydraulic Shearing Machine supplier, Manufacturer company in pune, India. Berlin Machine Corporation with its long experience in manufacturing NC Hydraulic Shearing Machine guarantees a product with engineering excellence, reliability, and performance with precision for long and extensive use. Having the assistance of highly qualified experts, we bring forth the technically the term shearing intends to apply a high-pressure device on a metal bar once to remove a part of the metal

The Berlin Machine Corporation Hydraulic Shearing Machines are creatively designed and developed through the experience of many years in working of Sheet Metal Machines. Hydraulic Shearing Machines can be obtained market-leading prices from us. We are a renowned Hydraulic Shearing Machine Manufacturer and Supplier in India

Hydraulic Shearing Machine from Berlin Machine Corporation meets the highest demands of the sheet metal industry. Output cutting, quality, and performance with precision being the final test, The strong and rigid construction combined with easy and safe machine operations ensures a long service life. Very precise machining of the fabricated structure guarantees working surfaces to achieve blade clearance of required tolerances.

Hydraulic Shearing Machine is an industrial machine with turning disks and edges used to cut hard iron sheets and metal bars. The term shearing means to apply a high-pressure tool on an element bar once to assassinate a part of the metal. All metal shears use the same technique in cutting where there are a fixed upper blade, a lower blade, and an adjustable clearance separating the two. When a force is applied to the upper blade it forces the lower blade to cut and separate the metal into two.

Price : INR. 12,90,000 (All Tax Inclusive)

Features:
  • Guillotine type hydraulically variable rake angle design
  • Better cutting accuracy in thin sheets at lower rake angle with twist free cuts
  • Higher cutting capacity at a higher rake angle
  • The stable robust ultrasonically tested IS 2062 grade welded structure
  • Rigid box type structure with the inclined member for ram & table
  • Less power consumption
  • Hydraulic & electrical safety interlocks for overloading
  • Better safety for operator and machine
  • Fast production of smaller jobs
  • NC up-gradation possible
  • Low noise & smooth operation gives the higher efficiency of the operator
Specifications:
Model No.Cutting LengthShearing Capacity (mm)Nominal Rake Angle in DegreeRake Angle Range in DegreeRake Angle Stroke per minThroat DepthHolding ForcePowerPacking Dimensions
M.S.S.S
in mmNominal Rake AngleMax. Rake AngleNominal Rake AngleMax. Rake AngleMin.Max.in Kg.H.P.(LxWxH)
FSH-2151500220.60.61 Degree1 Degree3030--32000x1000x1250
FHPB-2202000220.60.61 Degree1 Degree2525--32500x1250x1500
Additional Information:
  • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Port of Dispatch: ANY PORT OF INDIA
  • Delivery Time: READY STOCK OR 2-3 WEEKS
Rapid blade setting mechanism

The adjustable eccentric pivots of the swing beam permit rapid setting of the blade gap clearance within seconds. The pivot is rotated until the pointer corresponds to the thickness of the material to be sheared. This setting is only necessary at one side of the shear as it automatically adjusts the blade gap over the entire machine length. The cut outcomes achieved are very precise & burr-free. The fast return of the cutter beam is assisted by the required nitrogen accumulator

Due to simultaneous withdrawal of language & cutter beam, the cut pieces do not jam between two blades or between blades and back gauge stopper.

Advantages of Our Shears
  • Rapid blade gap adjustment
  • Low maintenance-compact and reliable hydraulic system
  • Cutting line illumination
  • Very accurate NC Backguage system with an accuracy of ±0.1 mm
  • Very accurate NC Backguage system with an accuracy of ±0.1 mm
  • Hydraulic clamps interlocked with cutter beam
  • Fine adjustment of blades with blade fixtures
Standard Scope of Supply
  • Set of shear blades mounted on the machine
  • Set of shear blades mounted on the machine
  • NC back gauge
  • 10-1000 mm on hardened & rolled dual lead screw.
  • See-through finger guard
  • Shadow line facility
  • Rapid blade gap adjustment
  • Foot pedal unit
