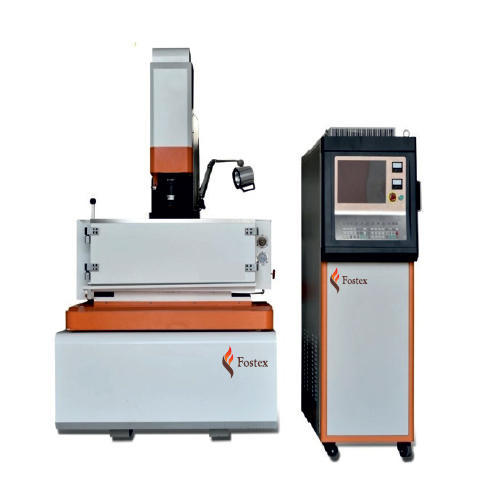

ZNC Electric Spark Discharge Machine supplier

Price : INR. 4,90,000 (All Tax Inclusive)

Berlin Machine Corporation is the preferred name in the market that is prepared in compliance with the present industry standards. Featuring easy polarity selection and day-night function, these offered machines are widely admired among our esteemed customers. Owing to the consistent performance, these ZNC EDM Machine are vastly utilized in industrial applications.

Features:
  • NC controlled Z axis feed precise.
  • Compact design for small part machining
  • Rigid machine base
  • Linear scales in all axes to ensure constant precision
  • Imperial Separate dielectric reservoir Stored
  • Low-maintenance and high efficiency
  • DC servo-drive for precise control and system stability
  • Anti-carbon automatically detection circuit.
  • 10- stage program to finish one time from rough to Easy-to-learn operation
  • Direct parameter input and adjustment at the control panel
  • Fire prevention and liquid level control automatically
  • Different discharge system as optional
  • Conform to the CE safety standard of power box
Specifications:
Model FD7125 FD7130 FD7135 FD7145 FD7150 FD7170
Table Size (mm) 450x280 500x300 630x350 700x450 800x500 1200x700
Oil Groove Inside Size (mm) 800x500x280 850x550x320 900x550x380 1200x700x450 1350x800x530 1950x1050x600
X Axis Travel (mm) 250 300 350 450 500 700
Y Axis Travel (mm) 200 200 250 350 400 600
Z Axis Travel (mm) 200 200 200+200 250+250 250+250 300+300
Spindle Travel (mm) 200 200 200+200 250+250 250+250 300+300
Max Distance from spindle to table (mm) 550 580 650 700x450 760 1000
Product Specification:
Automatic Grade Semi-Automatic
Brand Fostex
Power Supply 415 V, 3Ph, 50 Hz
Current 40 A
Weight 1050 kg to 3500 kg
Minimum Electrode Consumption Less than or Equal to 0.2%
Minimum Order Quantity 1 Set
Standard Accessories:
  • Standard Accessories:
  • Dial Gauge
  • Micrometer Head
  • Machine Lamp
  • M. S. Leveling Pads
  • Set of clamps with Nut & Studs
  • Flexible Flushing Tube
  • Plastic Flushing Tube
  • V'' Electrode Holder with C Clamp
  • Optional Accessories:
  • Shanks Setloat switch Assy
  • Toolkit & Inst. Manual
  • Orbital Head
  • Side sparking attachment
  • Anti-carbon automatically detection circuit.
  • Travel extension slide
  • Electrode rotating attachment
  • AC Servo motor
  • LCD Monitor Optional
Additional Information:
  • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A
  • Port of Dispatch: ANY PORT OF INDIA
  • Production Capacity: 100 SETS
  • Delivery Time: READY STOCK OR 2-3 WEEKS
