| Item | Unit | BM-540 | BM-650 | BM-850 | BM-1060 | BM-1260 | BM-1370 |
|---|---|---|---|---|---|---|---|
| Work slot size (length * width * depth) | mm | 1300×900×450 | 1600×980×540 | 1800×1100×570 | 2000×1300×600 | 2100×1300×600 | 2400×1340×700 |
| Workbench (length * width) | mm | 800×500×65 | 900×500×75 | 1150×600×100 | 1380×800×100 | 1400×800×100 | 1600×800×100 |
| T-shaped slot on workbench (number of slots × width) | mm | 3×12 | 3×12 | 3×14 | 5×18 | 5×18 | 5×18 |
| Attachment mounting plate T-slot (number of slots × width) | mm | 3×12 | 3×12 | 3×12 | 3×12 | 3×12 | 3×12 |
| Work travel x*y*z | X axis | 500×400×300 | 600×400×350 | 800×500×400 | 1000×600×400 | 1200×600×450 | 1300×700×450 |
| Accessory mounting plate Distance to work surface | mm | 350–650 | 450–800 | 500–900 | 550–950 | 600–1050 | 650–1100 |
| Maximum workpiece weight | kg | 1800 | 2000 | 3000 | 4000 | 4000 | 4000 |
| Maximum electrode weight | kg | 100 | 150 | 180 | 200 | 200 | 200 |
| Filter capacity | L | 800 | 1100 | 1300 | 1800 | 1800 | 1500×2 |
| Fuel tank size (length * width * height) | mm | 1700×1500×450 | 1900×1600×510 | 2260×1650×510 | 2460×1900×550 | 2460×1900×550 | 1600×2100×600 |
| Overall dimensions (length * width * height) | mm | 2100×2650×2350 | 2450×2900×2600 | 2500×3050×3100 | 2800×3550×3120 | 2800×3550×3120 | 3300×4500×3250 |
| Machine tool weight | kg | 2800 | 3500 | 4800 | 5500 | 6000 | 9000 |
| Item | Unit | BM-1260 | BM-1470 | BM-1680 | BM-1880 |
|---|---|---|---|---|---|
| Work slot size (length * width * depth) | mm | 2000×1140×600 | 2400×1340×700 | 2800×1540×700 | 3300×1540×700 |
| Workbench (length * width) | mm | 1200×600×100 | 1600×800×100 | 1700×1000×120 | 2000×1000×120 |
| T-shaped slot on workbench (number of slots * width) | mm | 5×14 | 5×18 | 6×18 | 6×18 |
| Attachment mounting plate T-slot (number of slots * width) | mm | 3×12 | 3×12 | 3×12 | 3×12 |
| Work travel X axis |
mm | single 1200 double 600 |
single 1400 double 850 |
single 1600 double 1100 |
single 1800 double 1200 |
| Y axis | 580 | 700 | 800 | 800 | |
| Z axis | mm | 400 | 450 | 550 | 600 |
| Accessory mounting plate Distance to work surface (min) | mm | 320 | 650 | 550 | 600 |
| Accessory mounting plate Distance to work surface (max) | mm | 720 | 1100 | 1100 | 1200 |
| Maximum workpiece weight | kg | 3000 | 4000 | 6000 | 7000 |
| Maximum electrode weight | kg | 150 | 200 | 220 | 250 |
| Maximum liquid level of working oil tank | mm | 500 | 600 | 600 | 600 |
| Filter capacity | L | 1400 | 1500×2 | 1500×2 | 1500×2 |
| Fuel tank size (length * width * height) | mm | 2460×1600×510 | 1600×2100×600×2pcs | 1800×2000×600×2pcs | 1600×2100×600×2pcs |
| Overall dimensions (length * width * height) | mm | 2500×3000×2550 | 3300×4500×3250 | 3850×4800×3550 | 3800×4900×3700 |
| Machine tool weight | kg | single 9000 double 6800 |
single 11000 double 10000 |
single 12000 double 12000 |
single 13000 double 15000 |
| Item | Unit | BM-2180 | BM-2510 | BM-3510 |
|---|---|---|---|---|
| Work slot size (length * width * depth) | mm | 3500×1800×750 | 3500×1800×750 | 4000×1800×750 |
| Workbench (length * width) | mm | 2500×1200×120 | 2700×1200×120 | 3500×1200×120 |
| T-shaped slot on workbench (number of slots * width) | mm | 6×18 | 6×18 | 6×18 |
| Attachment mounting plate T-slot (number of slots * width) | mm | 3×12 | 3×12 | 3×12 |
| X axis work travel | mm | single 2100 double 1400 |
single 2500 double 1800 |
double 2400 double 1100 |
| Y axis work travel | mm | 850 | 1000 | 1000 |
| Z axis work travel | mm | 650 | 650 | 650 |
| Accessory mounting plate Distance to work surface (min) | mm | 650 | 700 | 750 |
| Accessory mounting plate Distance to work surface (max) | mm | 1300 | 1350 | 1400 |
| Maximum workpiece weight | kg | 7000 | 10000 | 15000 |
| Maximum electrode weight | kg | 250 | 300 | 300 |
| Maximum liquid level of working oil tank | mm | 650 | 650 | 650 |
| Filter capacity | L | 1500×2 | 1500×2 | 1500×2 |
| Fuel tank size (length * width * height) | mm | 1600×2100×600×2pcs | 1800×2000×600×2pcs | 1800×2000×600×2pcs |
| Overall dimensions (length * width * height) | mm | 4200×5100×3800 | 4850×5100×3900 | 5350×5100×3950 |
| Machine tool weight | kg | single 15000 double 17000 |
single 17000 double 19500 |
single 11000 double 12000 |
Berlin machine provide best CNC EDM Machine at best cost. It is the best CNC Wire Cut EDM Machine, CNC Wire Cut FDK Series Machine, CNC Wire Cut FZC Series Machine, CNC Wire Cut FZT Series Machine, CNC Wire Cut Machine FDK M Series, EDM Machine, Semi-Automatic EDM Wire Cut Machine, CNC EDM Machines Supplier, Manufacturer Company in pune, Jaipur, solapur, satara, sangli, mumbai, kolhapur, nashik, gujrat, surat, ahmednagar, aurangabad India.

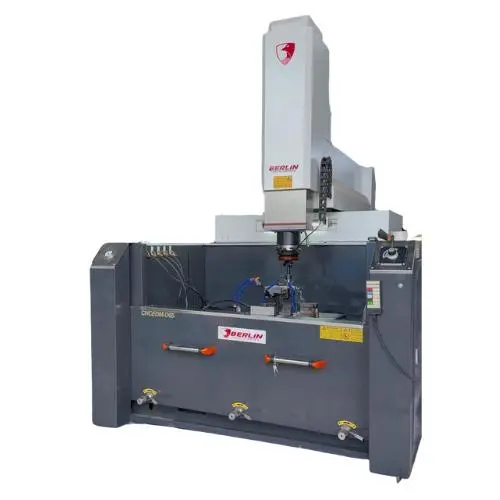

A CNC EDM machine is a specialized tool used for machining conductive materials with high precision and intricate detailing. Unlike traditional machining methods that rely on cutting or grinding, EDM utilizes electrical discharges to remove material from the workpiece, allowing for precise shaping and intricate patterns. These machines are equipped with advanced control systems that enable precise control over machining parameters, making them indispensable in industries where tight tolerances and complex geometries are required.
The operation of a CNC EDM machine begins with the user importing or creating a digital design file containing the desired geometry or pattern. The machine's control software then interprets the design and generates a toolpath that guides the electrode over the surface of the workpiece. As the electrode approaches the workpiece, a series of electrical discharges occur between the electrode and the workpiece, eroding material from the workpiece and creating the desired shape or pattern. This non-contact process allows for precise machining of intricate features and hard-to-machine materials.
