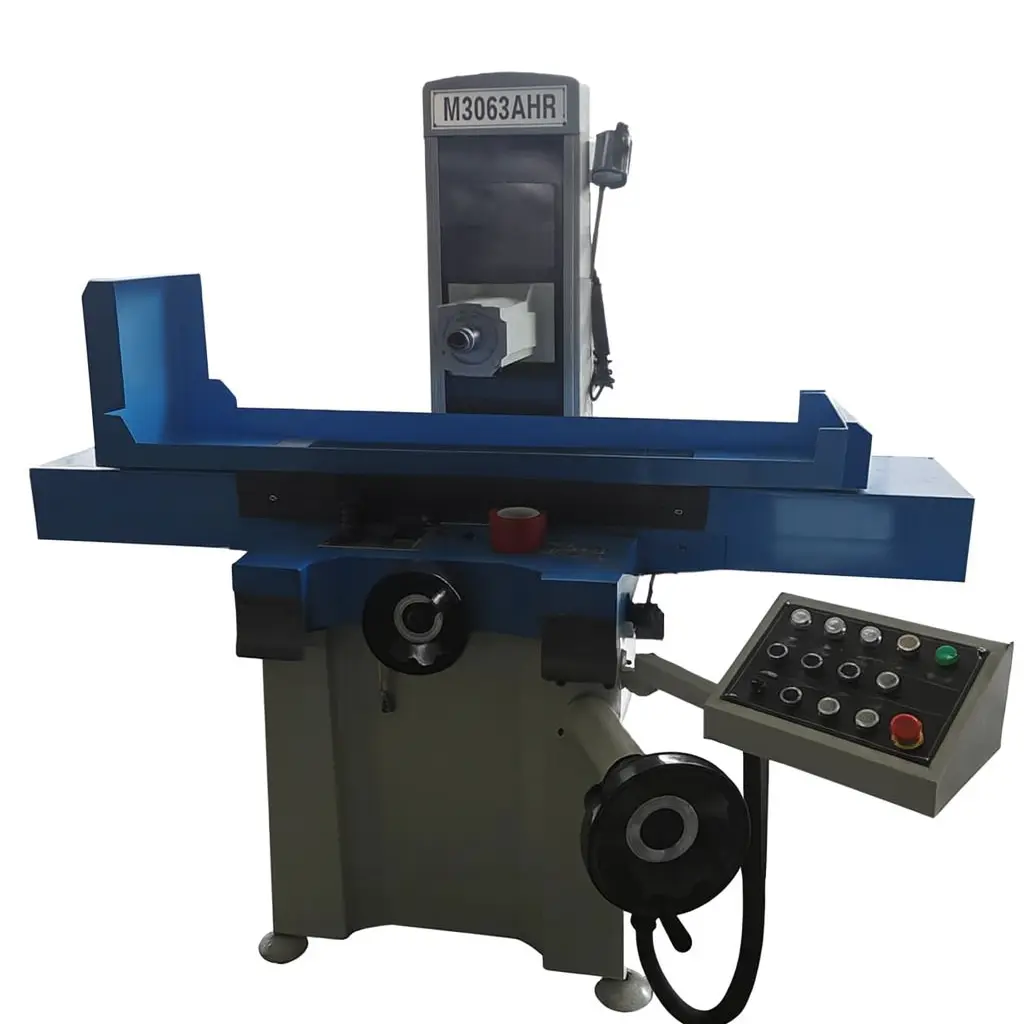

Hydraulic Surface Grinding Machine

Hydraulic Surface Grinding Machine

Hydraulic surface grinding machines are precision tools used for surface grinding operations on various workpieces. These machines utilize hydraulic systems to control the movement and pressure of the grinding wheel, resulting in precise and uniform material removal from the workpiece surface. They are widely used in industries such as aerospace, automotive, tooling, and precision engineering for producing flat and smooth surfaces with tight tolerances.

Key Features:

• Hydraulic Control System: Utilizes hydraulic pressure to control the movement and pressure of the grinding wheel, ensuring precise and uniform material removal.
• Flat Grinding Wheel: Equipped with a flat grinding wheel made of abrasive materials such as aluminum oxide or silicon carbide for removing material from the workpiece surface.
• Automatic Downfeed Mechanism: Provides automatic control over the vertical movement of the grinding wheel, allowing for precise depth adjustment and uniform grinding.
• Adjustable Worktable: Features a worktable that can be adjusted in height and tilted to accommodate different workpiece sizes and grinding angles.
• Coolant System: Integrated coolant system for cooling the grinding wheel and workpiece during grinding operations, reducing heat generation and improving surface finish.
• Digital Readout (DRO) System: Optional feature for precise measurement and monitoring of grinding parameters, enhancing accuracy and productivity.
• Magnetic Chuck: Secures the workpiece to the worktable using magnetic force, ensuring stability and precision during grinding operations.

Applications:

• Precision Machining: Grinding precision components such as dies, molds, and tooling inserts with tight tolerances and fine surface finishes.
• Aerospace Industry: Producing critical components such as turbine blades, engine parts, and structural components with exceptional precision and surface finish.
• Automotive Industry: Grinding engine components, transmission parts, and chassis components with tight tolerances and high-quality surface finishes.
• Tooling and Die Making: Manufacturing molds, dies, and tooling components for injection molding, stamping, and extrusion processes with superior accuracy and finish.
• General Engineering: Surface grinding operations on various materials including metals, plastics, and composites for industrial and manufacturing applications.

Advantages:

• Precision and Accuracy: Provides precise and uniform surface finishes with tight tolerances, meeting the most stringent quality standards.
• Efficiency: Offers efficient surface grinding operations with automatic downfeed control and precise depth adjustment mechanisms.
• Versatility: Capable of grinding a wide range of materials and workpiece sizes, offering versatility in surface finishing tasks.
• Productivity: Hydraulic control systems enable high-speed grinding operations and rapid material removal, resulting in increased productivity.
• Ease of Use: User-friendly controls and intuitive operation make these machines ideal for operators of all skill levels.
• Cost-effectiveness: Provides a cost-efficient solution for surface finishing tasks, reducing the need for outsourcing and improving workflow efficiency.
