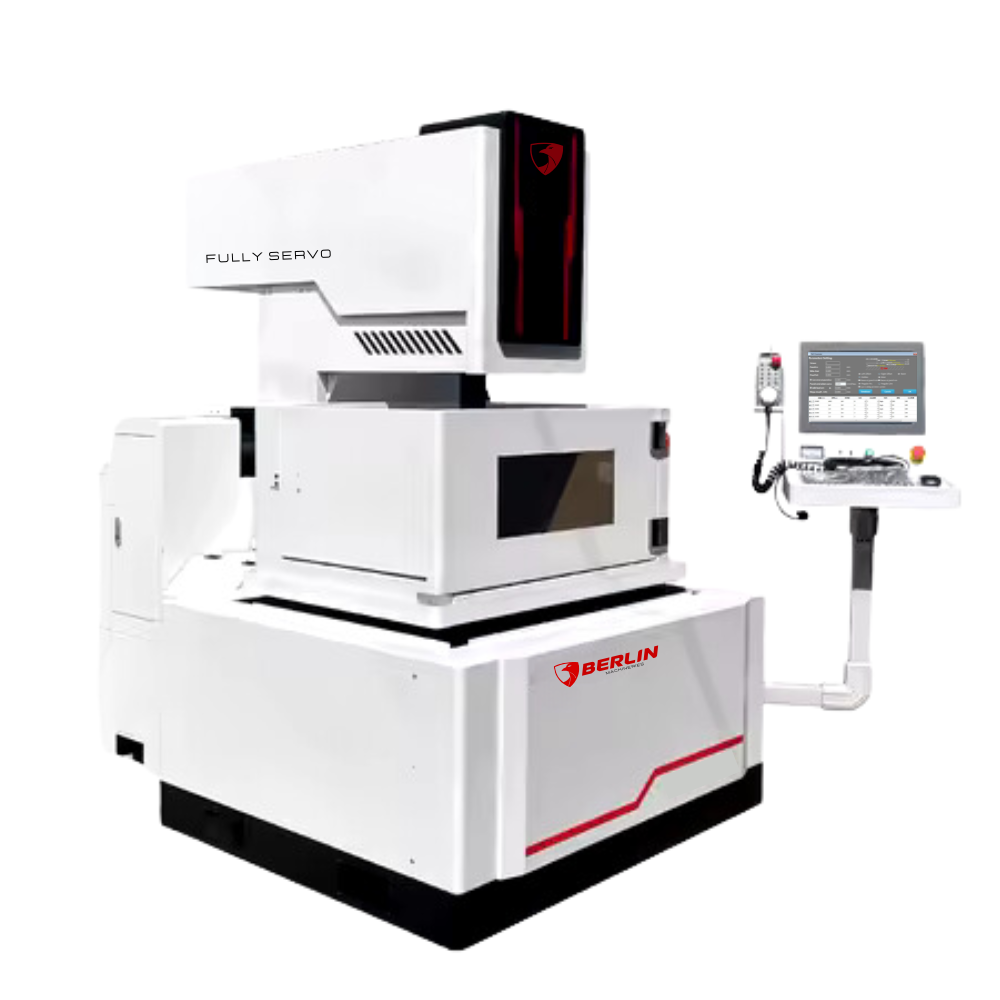

CNC Wire Cut Machine SF Series

Home / Products / CNC Wire Cut EDM Machine

CNC Wire Cut Machine
SF Series

Price : INR. Rs 16.5 Lakh (All Tax Inclusive)

Machine Tool Features:

Integrated design with fully enclosed structure.

Taiwan make linear guide rail for precision movement.

Taiwan make ball screw in XY & UV axis.

Elastic coupling for smooth transmission.

Deluxe environmental protection enclosure.

Spring tension automatic tightening in threads.

120L working fluid tank for stable operations.

Centralized lubricating oil pump.

High-pressure pump with multi-stage filtration & paper filter element.

HT250 casting made with resin sand process.

T-shaped slot for work piece adjustment.

Chrome plated wire drum with dynamic balancing at 0.005 micron.

Controller Features:

Industrial computer with Quad-core i3 processor, 64GB hard disk, 4GB memory, 15-inch LCD.

Integrated cabinet with servo machine and multiple cutting options.

XY axis with servo drive.

4-axis linkage control for complex operations.

DXF drawing import & direct drawing functions.

Closed loop control system.

Reverse clearance compensation and pitch compensation.

Automatic shutdown of water pump & machine after cutting.

Fast programming function for complex multi-hole graphics.

Model	Unit	SF300	SF400	SF500	SF600
Table size	mm	Table Size	Table Size	Table Size	Table Size
Table travel (X × Y)	mm	320 × 400	400 × 500	500 × 630	630 × 800
Max. Z axis travel	mm	300	300	300	300
Control system	-	LQCUT	LQCUT	LQCUT	LQCUT
U and V axis travel	mm	+30, LM guide	+30, LM guide	+30, LM guide	+30, LM guide
Machining taper	° / mm	±6° / 80	±6° / 80	±6° / 80	±6° / 80
Maximum load capacity	kg	600	800	1000	1200
XYZ axis resolution	mm	0.001	0.001	0.001	0.001
Repeatability	mm	≤0.005	≤0.005	≤0.005	≤0.005
Drum runout	mm	≤0.005	≤0.005	≤0.005	≤0.005
Wire Diameter	mm	0.12–0.22	0.12–0.22	0.12–0.22	0.12–0.22
Wire feeding speed range	m/s	1–12	1–12	1–12	1–12
Maximum processing current	A	8	8	8	8
Maximum speed (Cr12, H=60mm)	mm²/min	≥200	≥200	≥200	≥200
Interface Module	-	LAN, RS232, USB
Power Rating	kW	≤3
Multi Cut accuracy (Cr12, H=40mm)	mm	≤±0.004	≤±0.004	≤±0.004	≤±0.004
Surface Finish (Straight cutting, H ≤ 40mm)	μm	1 cut Ra≤2.5, 2 cut Ra1.6, 3 cut Ra≤1.0
Overall dimensions (L × W × H)	mm	1960 × 1620 × 1915	2070 × 1800 × 1920	2390 × 2000 × 2130	2650 × 2310 × 2140
Net Weight	kg	2100	2300	2800	3500

Model

Unit

SF300

SF400

SF500

SF600

Table size

Table Size

Table travel (X × Y)

320 × 400

400 × 500

500 × 630

630 × 800

Max. Z axis travel

300

Control system

LQCUT

U and V axis travel

+30, LM guide

Machining taper

° / mm

±6° / 80

Maximum load capacity

600

800

1000

1200

XYZ axis resolution

0.001

Repeatability

≤0.005

Drum runout

≤0.005

Wire Diameter

0.12–0.22

Wire feeding speed range

m/s

1–12

Maximum processing current

Maximum speed (Cr12, H=60mm)

mm²/min

≥200

Interface Module

LAN, RS232, USB

Power Rating

≤3

Multi Cut accuracy (Cr12, H=40mm)

≤±0.004

Surface Finish (Straight cutting, H ≤ 40mm)

μm

1 cut Ra≤2.5, 2 cut Ra1.6, 3 cut Ra≤1.0

Overall dimensions (L × W × H)

1960 × 1620 × 1915

2070 × 1800 × 1920

2390 × 2000 × 2130

2650 × 2310 × 2140

Net Weight

2100

2300

2800

3500

CNC Wire Cut Machine SF Series
