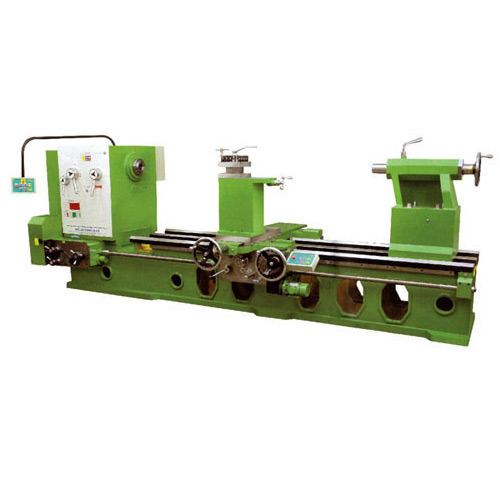

Heavy Duty All Geared Lathe Machine

Specification

Model	FLG-H267	FLG-H305	FLG-E305
Centre Height over Flat Bed Ways (mm)	267 (10.5")	305 (12")	305 (12")
Swing Over Bed (mm)	525	600	580
Swing Over Cross Slide (mm)	300	375	400
Swing In Gap (mm)	830	910	900
Length of Gap in Front of Face Plate (mm)	200	200	200
Width of Bed (mm)	325 (Optional: 375)	375	—
Admit Between Centres (mm)	525 / 1000 / 1600 / 1900 / 2500 / 3100 / 3710 / 4320 / 4930
Length of Bed (mm)	1675 (5'-6") / 2135 (7') / 2745 (9') / 3050 (10') / 3660 (12') / 4270 (14') / 4875 (16') / 5485 (18') / 6095 (20')

Main Spindle

Specification	Details
Spindle Bore (mm)	50 / 79
Spindle Nose Diameter (mm)	A2-6 / A2-8
Spindle Thread	—
Spindle Morse Taper	MT-6
Spindle Adapter Morse Taper	MT-4
Spindle Speeds (No.)	12
Speed Range (RPM)	30, 43, 55, 85, 115, 160, 210, 285, 400, 545, 785, 1060
Spindle Drive	—
Spindle Mounting	Taper Roller Bearings

Tail Stock Spindle

Specification	Details
Spindle Diameter (mm)	60.3
Spindle Travel (mm)	180
Spindle Morse Taper	MT-4

Feeds

Specification	Details
Without Norton Gearbox – Inch	—
Fully Norton Gearbox – Inch	40 / 2 to 6 TPI
Nos. of Feeds / Range (Longitudinal)	40 / 0.666 to 2 mm per rev of spindle
Nos. of Feeds / Range (Cross)	40 / 0.0165 to 5 mm per rev of spindle

Other Details

Specification	Details
Floor Space Occupied (mm)	2200, 2660, 3140, 3500, 4110, 4720, 5330, 5940, 6550 × 1450 / 2300, 2760, 3240, 3600, 4210, 4820, 5430, 6040, 6650 × 1500
Approx. Case Dimension (mm)	2400×1300×1600 / 2850×1300×1600 / 3350×1300×1600 / 3700×1300×1600 / 4300×1300×1600 / 5000×1300×1600 / 5500×1300×1600
Electrical	1 H.P. / 0.75 kW, 3 Phase, 50 Hz, 440V, 1140 RPM motor with Reverse–Forward switch, V-Belt, Electrical Wiring & Fittings.

All geared lathe machines are versatile tools designed for turning, facing, threading, and other machining operations on various workpieces. They feature a robust construction and a gearbox-driven spindle system that provides precise speed control and ample power for a wide range of machining tasks. Available in medium-duty and heavy-duty configurations, these machines cater to different machining requirements and workpiece sizes.

• Gearbox-Driven Spindle: Equipped with a gearbox-driven spindle system for precise speed control and increased torque output.
• Variable Speed Control: Offers multiple speed ranges to accommodate various cutting operations and workpiece materials.
• Precision Machining Capabilities: Provides accurate and consistent results with precise control over cutting parameters.
• Tailstock with Quill: Provides additional support for long workpieces and enables drilling, reaming, and tapping operations.
• User-Friendly Controls: Easy-to-use control panel or manual handwheels for adjusting spindle speed, feed rate, and other machining parameters.
• Safety Features: Built-in safety mechanisms such as emergency stop buttons and spindle brake for operator protection and machine safety.

Applications:

• Ideal for small to medium-sized workpieces in workshops, tool rooms, and educational institutions.
• Suitable for small parts manufacturing, tool room operations, educational training, maintenance and repair, and hobbyist use.
• Designed for large and heavy workpieces in industrial and manufacturing environments.
• Suitable for heavy machinery manufacturing, aerospace industry, shipbuilding, energy sector, and automotive industry.

Advantages:

• Precision and Accuracy: Provides accurate and consistent results in machining operations, ensuring high-quality finished parts.
• Versatility: Capable of handling a wide range of turning and machining tasks on different workpiece sizes and materials.
• Power and Torque: Offers ample power and torque for heavy cutting and machining of tough materials.
• Durability and Reliability: Built with a robust construction to withstand heavy-duty machining operations and ensure long-term reliability.
• Ease of Use: User-friendly controls and intuitive operation make these machines ideal for operators of all skill levels.
