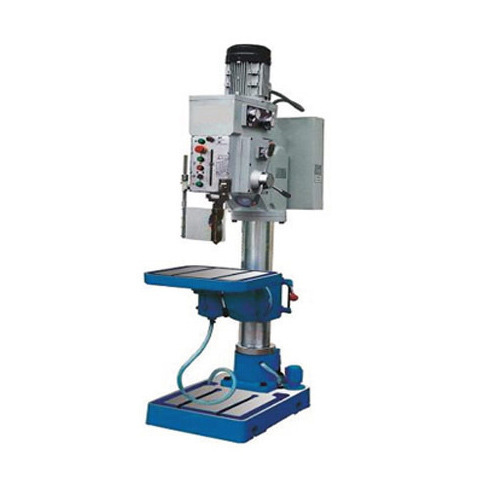

Pillar Drill Machine
| DESCRIPTION |
Z5025 |
Z5035 |
Z5040 |
Z5050 |
| Max. Drilling Capacity (mm) | 25 | 35 | 40 | 50 |
| Max. Tapping Capacity (mm) | | M24 | M27 | M30 |
| Diameter of Column (mm) | 100 | 140 | 160 | 180 |
| Spindle Travel (mm) | 150 | 160 | 180 | 240 |
| Distance Spindle Axis to Column (mm) | 225 | 330 | 360 | 360 |
| Spindle Taper | MT3 | MT4 | MT4 | MT4 or MT5 |
| Spindle Speed Range (R/min) | 100–2900 | 75–2500 | 42–2050 | 42–2050 |
| Spindle Speed Series | 8 | 12 | 12 | 12 |
| Spindle Feeds (mm/r) | 0.1 / 0.2 / 0.3 | 0.1 / 0.2 / 0.3 | 0.07 / 0.15 / 0.26 / 0.40 | 0.07 / 0.15 / 0.26 / 0.40 |
| Worktable Surface (mm) | | 560 × 550 | 550 × 470 | 550 × 470 |
| Table Travel (mm) | 560 | 550 | 550 | 550 |
| Bed Dimension (mm) | | 400 × 390 | 450 × 440 | 450 × 440 |
| Overall Height (mm) | 1900 | 2300 | 2330 | 2380 |
| Main Motor (kw) | 1.1 / 0.75 | 1.5 / 2.2 | 2.2 / 2.8 | 2.2 / 2.8 |
| Coolant Motor (W) | 40 | 40 | 40 | 40 |
| G.W./N.W. (kg) | 300 / 250 | 670 / 600 | 750 / 680 | 750 / 730 |
| Packing Dimension (cm) | 176 × 60 × 83 | 108 × 62 × 230 | 108 × 62 × 245 | 108 × 62 × 245 |
Pillar drill machines, also known as column drill machines, are versatile tools designed for precise drilling, reaming, countersinking, and tapping operations on various materials including metals, plastics, and wood. They feature a sturdy column that provides support and stability to the drilling assembly, making them ideal for both light-duty and heavy-duty drilling tasks.
Key Features:
- Sturdy Construction: Built with a robust column and base to provide stability and minimize vibrations during drilling operations.
- Adjustable Table: Features a worktable that can be adjusted in height and tilted to accommodate different workpiece sizes and drilling angles.
- Powerful Motor: Equipped with a high-speed motor to provide ample power for drilling through tough materials.
- Spindle Speed Control: Offers variable speed settings to accommodate different drilling requirements and workpiece materials.
- Quill Feed Mechanism: Provides precise control over the drilling depth, allowing for accurate and repeatable hole depths.
- Safety Features: Built-in safety mechanisms such as emergency stop buttons and spindle brake for operator protection and machine safety.
Applications:
- Metalworking: Drilling holes in metal workpieces for fabrication, construction, and assembly processes.
- Woodworking: Creating holes in wooden workpieces for furniture making, cabinetry, and carpentry projects.
- Plastics and Composites: Precision drilling operations in the manufacturing of plastic components, composites, and electronic enclosures.
- Maintenance and Repair: Performing drilling, reaming, and tapping operations on existing parts and equipment for maintenance and repair purposes.
- Educational Training: Providing hands-on learning experiences for students and apprentices to develop drilling skills and understand drilling processes.
Advantages:
- Precision: Provides accurate and consistent drilling results, ensuring precise hole placement and alignment.
- Versatility: Capable of handling a wide range of drilling tasks on different materials and workpiece sizes.
- Efficiency: Offers efficient drilling operations with variable speed control and precise depth adjustment mechanisms.
- Ease of Use: User-friendly controls and intuitive operation make these machines ideal for operators of all skill levels.
- Safety: Built-in safety features ensure operator protection and machine safety during drilling operations.
