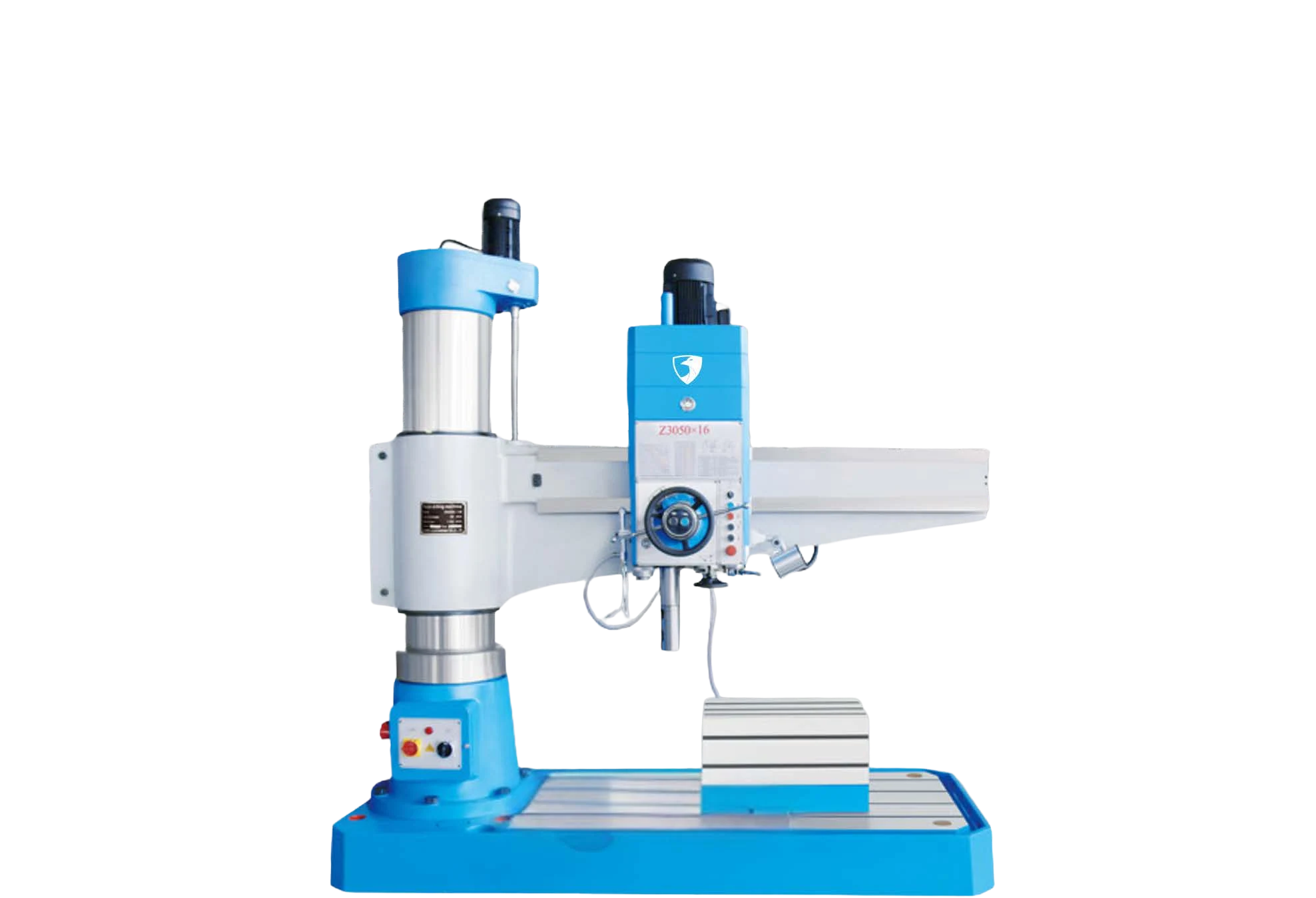

Radial Drill Machine
| Specification |
Z3040X8/1 |
Z3040X10/1 |
Z3050X16/1 |
Z3063X20/1 |
Z3080X25/1 |
Z30100X31 |
Z30125X40 |
| Max. Drilling Diameter (mm) | 40 | 40 | 50 | 63 | 80 | 100 | 125 |
| Distance Between Spindle Axis & Column (mm) | 820 | 1020 | 1600 | 2000 | 2500 | 3150 | 4000 |
| Distance Spindle Nose (mm) | 320-900 | 320-900 | 1220 | 1600 | 2000 | 2500 | 2500 |
| Working Surface of Base Plate (mm) | 350 | 350 | 320 | 400 | 550 | 750 | 750 |
| Spindle Travel (mm) | 240 | 240 | 315 | 400 | 450 | 500 | 560 |
| Spindle Taper | MT4 | MT4 | MTS | MTS | MT6 | MT6 | MT80 |
| Range of Spindle Speed (rpm) | 75-1220 | 75-1220 | 25-2000 | 20-1600 | 16-1250 | 8-1000 | 6.3-800 |
| Number of Spindle Speeds | 6 | 6 | 16 | 16 | 16 | 22 | 22 |
| Range of Spindle Feeds (mm/r) | 0.1-0.25 | 0.1-1.25 | 0.04-3.20 | 0.01-3.2 | 0.01-3.2 | 0.06-3.2 | 0.06-3.2 |
| Number of Spindle Feeds | 3 | 3 | 16 | 16 | 16 | 16 | 16 |
| Table Size (mm) | 1370x700x160 | 600x450x450 | 500x630 | 630x800 | 800x1000 | 800x1250 | 800x1250 |
| Travel of Spindle (mm) | 900 | 1250 | 1250 | 1550 | 2000 | 2580 | 3400 |
| Power of Main Motor (kW) | 1.5 | 1.5 | 4 | 5.5 | 7.5 | 15 | 18.5 |
| Net Weight (kg) | 1200 | 1230 | 3500 | 7000 | 11000 | 20000 | 28500 |
| Overall Dimension (LxWxH mm) | 1407x720x1885 | 1600x720x1885 | 2500x1070x2840 | 3080x1250x3291 | 3730x1400x4025 | 4780x1630x4600 | 5910x2000x5120 |
Radial drill machines are powerful tools designed for drilling, reaming, tapping, and counterboring operations on large workpieces. They feature a radial arm that can be adjusted and positioned to reach different areas of the workpiece with ease and precision. These machines are widely used in industries such as manufacturing, construction, metalworking, and fabrication for their ability to drill holes accurately and efficiently.
Key Features:
- Adjustable Radial Arm: The radial arm can be moved horizontally and vertically to position the drill spindle at different angles and distances from the workpiece.
- Variable Speed Control: Offers multiple speed settings to accommodate various drilling operations and workpiece materials.
- Powerful Motor: Equipped with a high-horsepower motor to provide ample power for drilling through tough materials.
- Large Worktable: Features a spacious worktable to support heavy and oversized workpieces during drilling operations.
- Clamping Mechanism: Securely holds the workpiece in place during drilling to prevent movement and ensure accurate hole placement.
- Swiveling Head: Allows the drill head to be tilted or angled for drilling holes at different angles and orientations.
- Depth Stop Mechanism: Enables precise control over the depth of drilling for consistent hole depths across multiple workpieces.
Applications:
- Manufacturing Industry: Used for drilling holes in large components such as steel beams, plates, and castings for structural assemblies and machinery.
- Construction Sector: Ideal for drilling holes in metal frames, brackets, and supports for building construction and infrastructure projects.
- Metalworking and Fabrication: Widely used in metal fabrication shops for drilling holes in sheet metal, pipes, and profiles for assembly and fabrication purposes.
- Automotive Workshops: Utilized for drilling holes in engine blocks, chassis components, and suspension parts for automotive repair and customization.
- Shipbuilding and Marine Engineering: Employed for drilling holes in ship hulls, bulkheads, and structural components during ship construction and repair operations.
Advantages:
- Versatility: Capable of performing a wide range of drilling operations on various materials and workpiece sizes.
- Precision: Provides accurate hole placement and consistent hole depths, ensuring high-quality results in drilling tasks.
- Efficiency: Offers fast drilling speeds and rapid tool changes, resulting in increased productivity and reduced machining time.
- Accessibility: The adjustable radial arm allows the drill spindle to reach areas of the workpiece that are difficult to access with other types of drilling machines.
- Safety: Built-in safety features such as emergency stop buttons and spindle brake mechanisms ensure operator safety during drilling operations.
