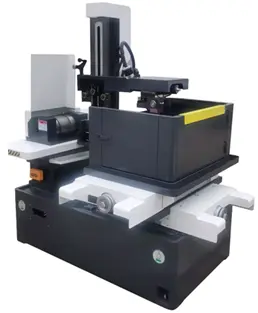

HIGH SPEED WIRECUT MACHINE PUNE

MACHINE SPECIFICATIONS

Item	Unit	HYPER 400	HYPER 300
Table Size	mm	750 × 550	650 × 450
Table Travel (X × Y)	mm	500 × 400	400 × 300
Max Z Axis Travel	mm	550	550
Max Workpiece Weight	kg	1000	1000
Max Cutting Angle (Optional)	°	±3° (15°, 30° Optional)
Cutting Accuracy	mm	0.010 – 0.015
Wire Moving Speed	m/s	11.5
Cutting Speed	mm²/min	Max. 280 – 300
Power Supply	—	Single Phase 220V / 50Hz Three Phase 415V / 50Hz (2.0 kW)
Best Finish (Ra)	µm	Single Cutting ≤ 2.5 Multi Cutting ≤ 1.25
Wire Diameter	mm	Ø 0.12 – 0.25
Machine Dimensions (L × W × H)	mm	1600 × 1200 × 1700	1400 × 1100 × 1600

Item

Unit

HYPER 400

HYPER 300

Table Size

750 × 550

650 × 450

Table Travel (X × Y)

500 × 400

400 × 300

Max Z Axis Travel

550

Max Workpiece Weight

1000

Max Cutting Angle (Optional)

±3° (15°, 30° Optional)

Cutting Accuracy

0.010 – 0.015

Wire Moving Speed

m/s

11.5

Cutting Speed

mm²/min

Max. 280 – 300

Power Supply

—

Single Phase 220V / 50Hz
Three Phase 415V / 50Hz
(2.0 kW)

Best Finish (Ra)

µm

Single Cutting ≤ 2.5
Multi Cutting ≤ 1.25

Wire Diameter

Ø 0.12 – 0.25

Machine Dimensions (L × W × H)

1600 × 1200 × 1700

1400 × 1100 × 1600

HIGH SPEED WIRECUT MACHINE
