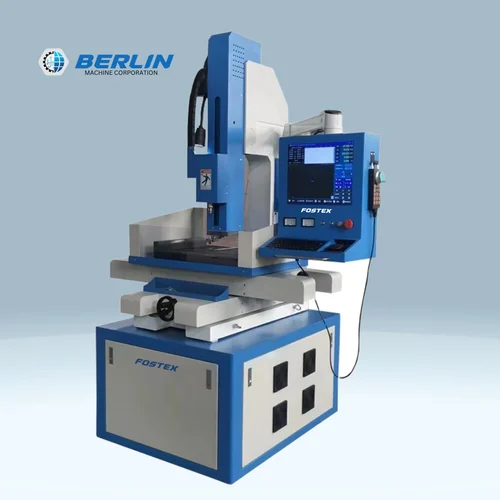

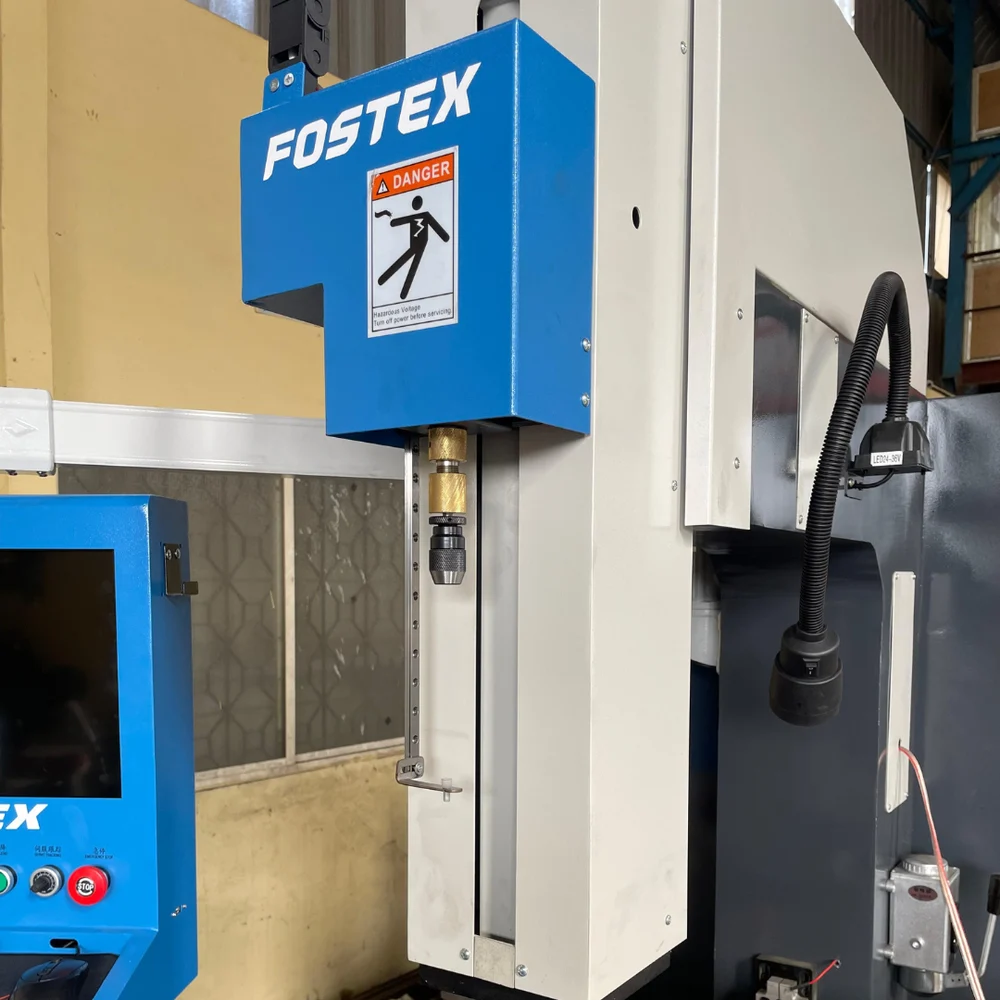

Cnc Edm Drilling Machine

Drilling diameter from 0.3mm to 3mm. (Optional Max. Φ 6.0mm).
The maximum depth ratio could be 300:1.
Blind holes can also be drilled, Precision (hole straightness) is less than 0.04 mm.
Can drill on oblique and curved surface directly.
Can use water as coolant, low cost and no pollution.
Fast processing speed and low consumption.

Add To Cart

Enquiry Now

Call Now

Specification	CNC35-S	CNC450-S	CNC550-S	CNC630-S	CNC800-S	CNC1000-S
Working Table Size (mm)	400×600	570×810	650×950	750×1140	980×1350	1100×1600
Stroke X-Y (mm)	350×450	450×550	550×630	630×800	800×1000	1000×1200
Electrode Diameter (mm)	Φ0.2–Φ3.0	Φ0.2–Φ3.0	Φ0.2–Φ3.0	Φ0.2–Φ3.0	Φ0.2–Φ3.0	Φ0.2–Φ3.0
Spindle Stroke W-Axis (mm)	350	350	350	400	400	500
Working Stroke Z-Axis (mm)	350	350	350	400	400	500
Max Adjusting Speed of Spindle (mm/min)	500	500	500	500	500	500
Turn Head Speed (rpm)	0–200	0–200	0–200	0–200	0–200	0–200
Distance Between Table & Guider (mm)	350	350	350	400	400	500
Movement Speed XY (mm/min)	1000	1000	1000	1000	1000	1000
Capacity of Working Fluid (L)	25	25	25	25	25	25
Max Pressure of Working Fluid (MPA)	10	10	10	10	10	10
CNC Axis	X, Y, Z (C axis)	X, Y, Z (C axis)	X, Y, Z (C axis)	X, Y, Z (C axis)	X, Y, Z (C axis)	X, Y, Z (C axis)
Drill Processing Axis	Z	Z	Z	Z	Z	Z
Maximum Processing Current (A)	30	30	30	30	30	30
Processing Speed (mm/min)	30–60	30–60	30–60	30–60	30–60	30–60
Input Maximum Power (KW)	3Φ415V/50Hz/4.5kw	3Φ415V/50Hz/4.5kw	3Φ415V/50Hz/4.5kw	3Φ415V/50Hz/4.5kw	3Φ415V/50Hz/4.5kw	3Φ415V/50Hz/4.5kw
Minimum Electrode Consumption Ratio	≤0.8%	≤0.8%	≤0.8%	≤0.8%	≤0.8%	≤0.8%
Digital Display Mode	3 axis	3 axis	3 axis	3 axis	3 axis	3 axis
Dimension (L×W×H) mm	1400×1300×1950	1600×1300×2000	1850×1600×2000	2100×1800×2100	2250×1940×2100	2950×2400×2300
Weight (kg)	600	1100	1500	2000	2600	3800
